Case Study: Inheriting Interface and Implementation

Make abstract base class Shape

• Pure virtual functions (must be implemented)
  • getName, print
  • Default implementation does not make sense
• Virtual functions (may be redefined)
  • getArea, getVolume; initially return 0.0
  • If not redefined, uses base class definition
• Derive classes Point, Circle, Cylinder

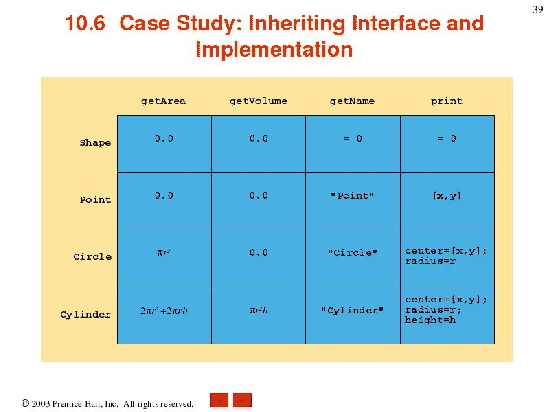

Figure 5.13: Defining the polymorphic interface for the Shape hierarchy classes.

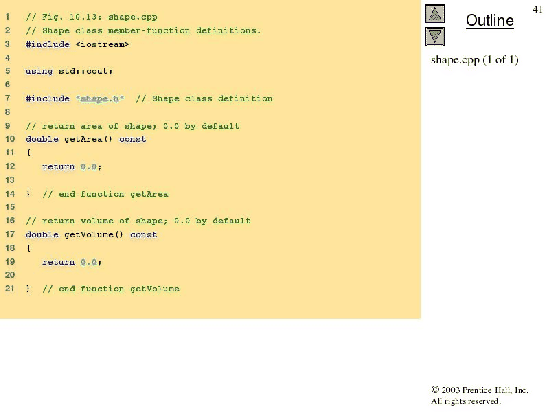

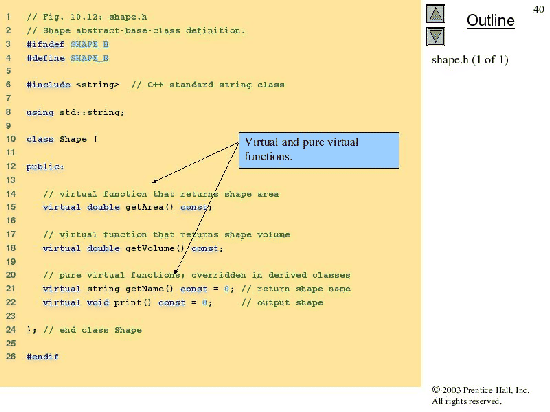

Figure 5.14: Abstract base class Shape header file and Abstract base class Shape.

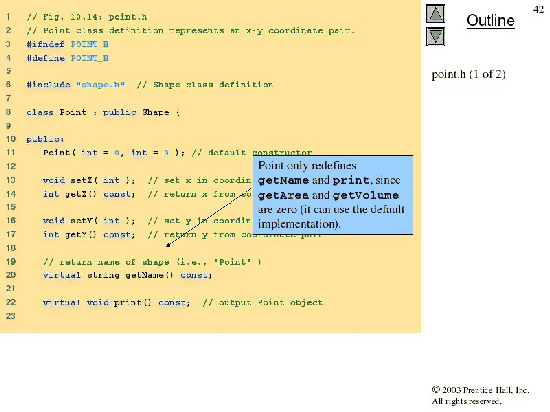

Figure 5.15: Point class header file.

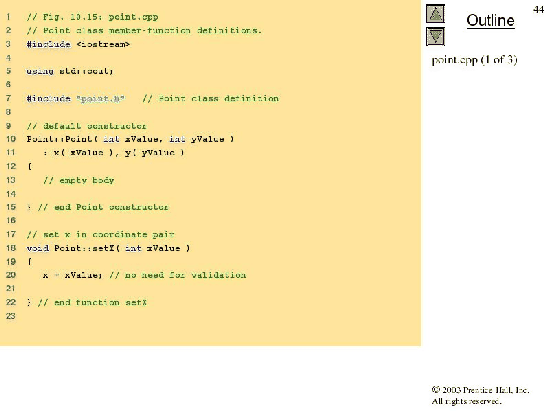

Figure 5.16: Point class implementation file. (part 1 of 2)

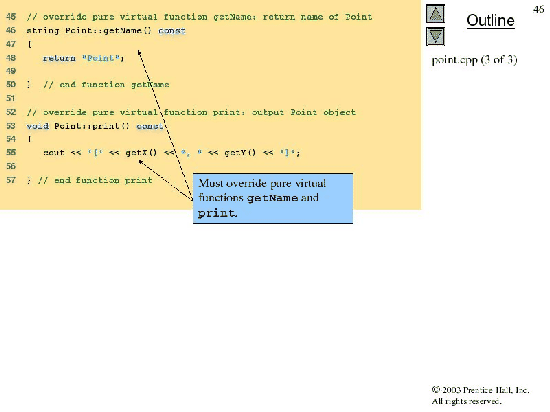

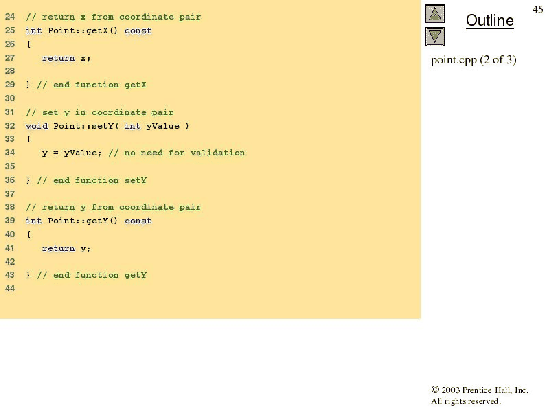

Figure 5.17: Point class implementation file. (part 2 of 2)

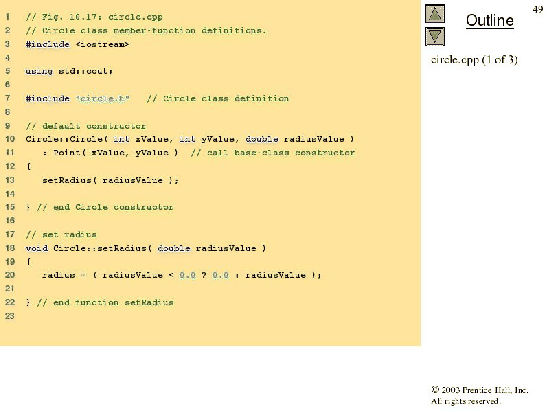

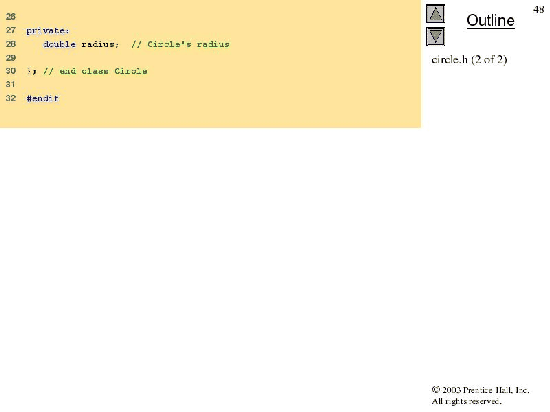

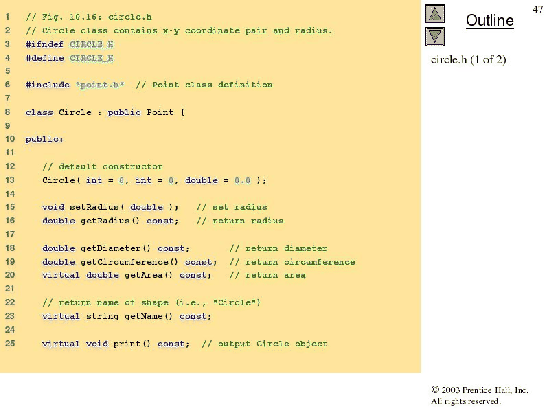

Figure 5.18: Circle class header file and Circle class that inherits from class Point. (part 1 of 2)

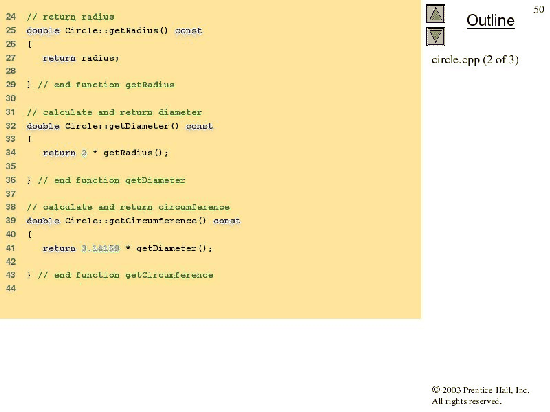

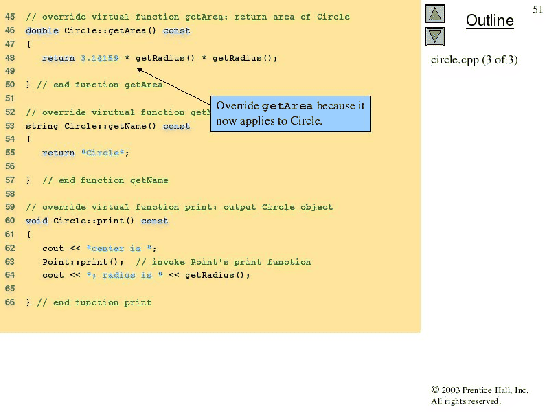

Figure 5.19: Circle class that inherits from class Point. (part 2 of 2)

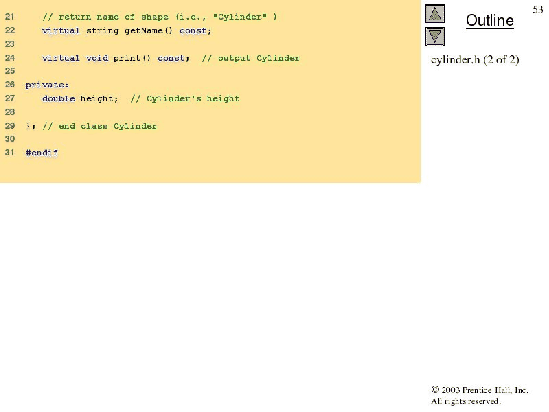

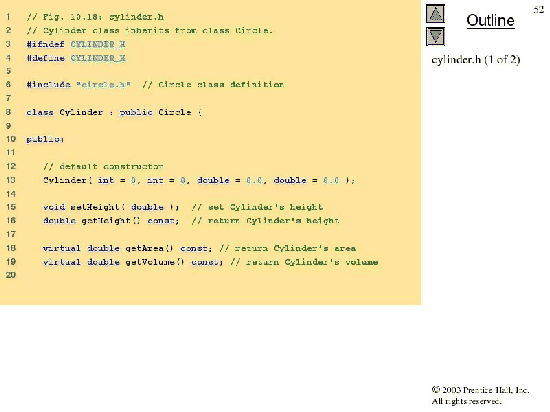

Figure 5.20: Cylinder class header file.

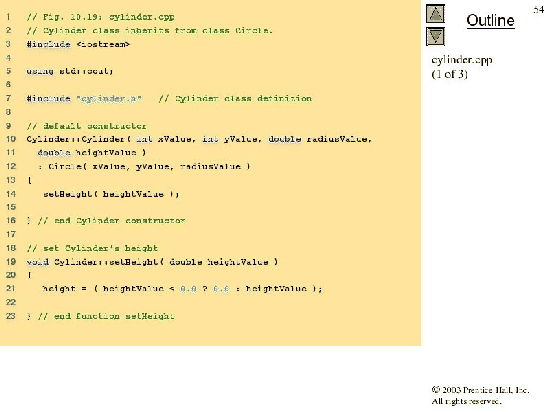

Figure 5.21: Cylinder class implementation file. (part 1 of 2)

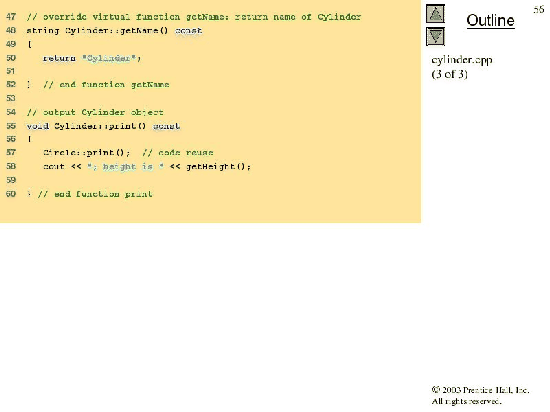

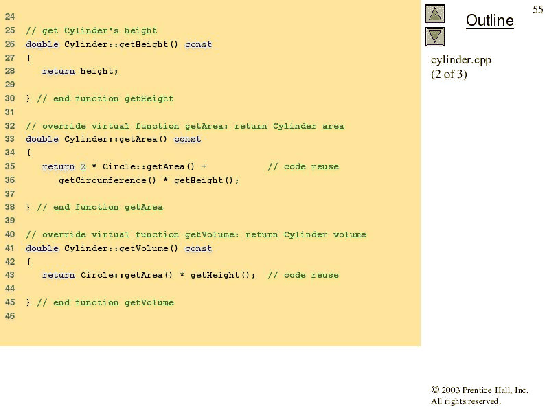

Figure 5.22: Cylinder class implementation file. (part 2 of 2)

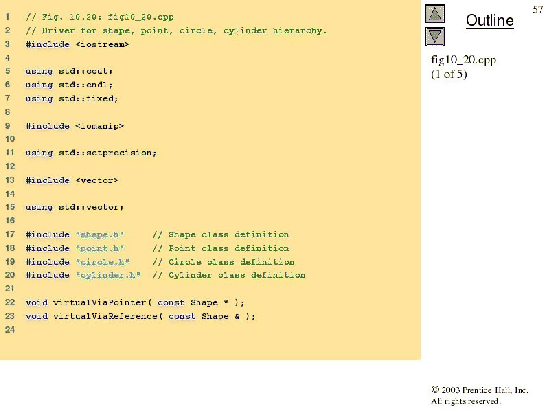

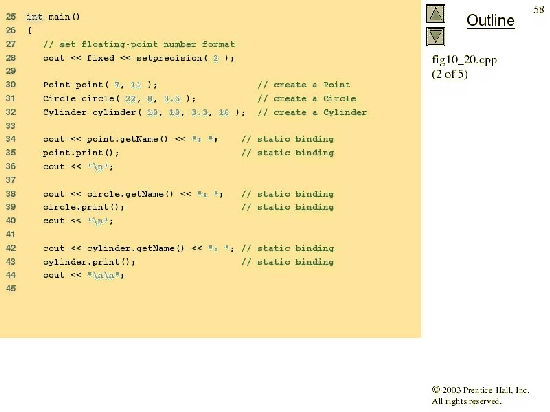

Figure 5.23: Demonstarting polymorphism via a hierarchy headed by an abstract base class. (part 1 of 3)

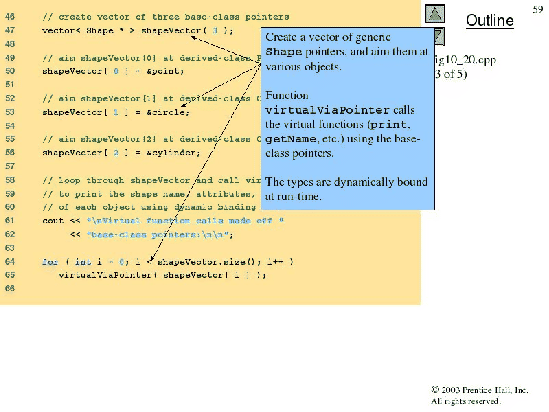

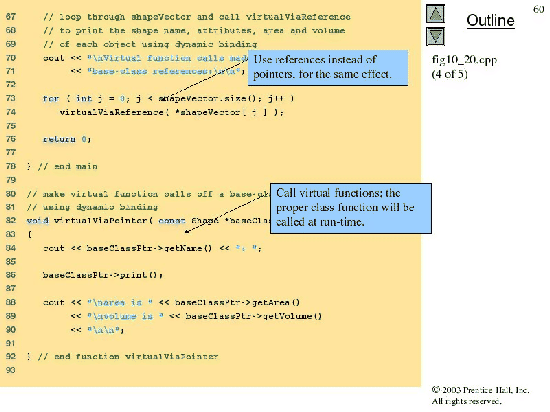

Figure 5.24: Demonstarting polymorphism via a hierarchy headed by an abstract base class. (part 2 of 3)

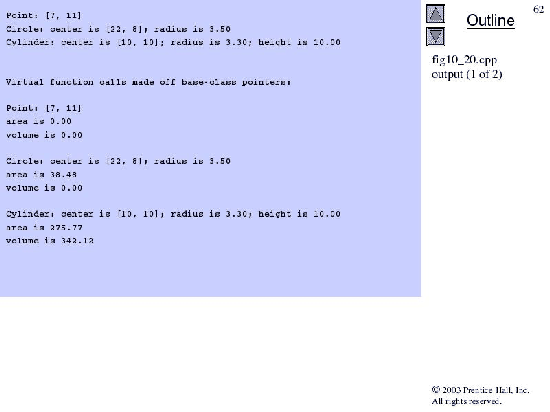

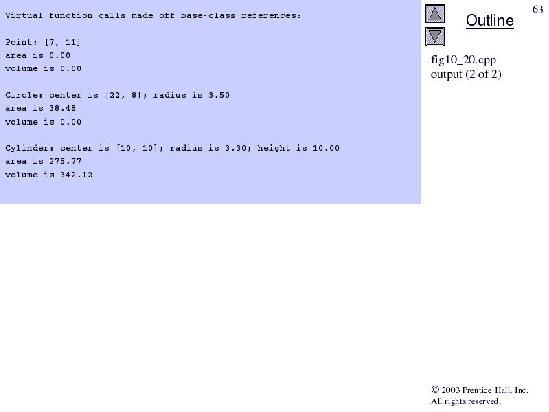

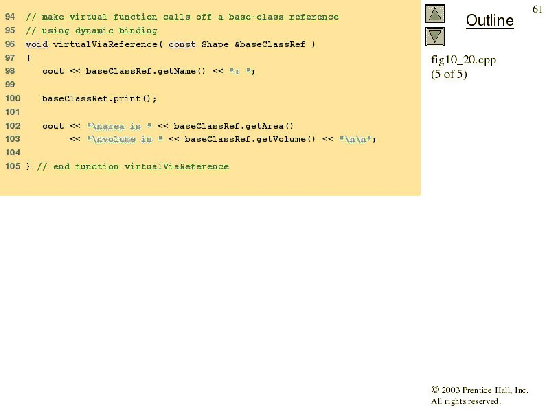

Figure 5.25: Demonstarting polymorphism via a hierarchy headed by an abstract base class. (part 3 of 3)
