Threads Model
In shared memory multiprocessor architectures, such as SMPs,
threads can be used to implement parallelism
.
In the threads model of parallel programming, a
single
process can have
multiple concurrent
,
execution paths
.
Most simple analogy for threads is the concept of a single program that includes a number of subroutines:

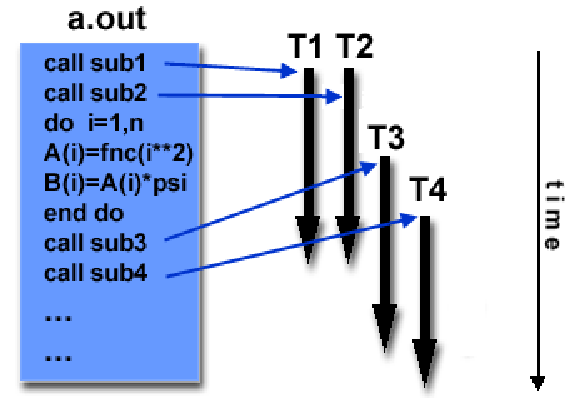

Figure 5.1:
Threads model.
Main program loads and acquires all of the necessary system and user resources to run.
Main program
performs some serial work,
and then creates a number of tasks (threads) that can be
scheduled
and
run by
the OS
concurrently
.
Each thread has
local data
, but also, shares the entire resources of
main program
.

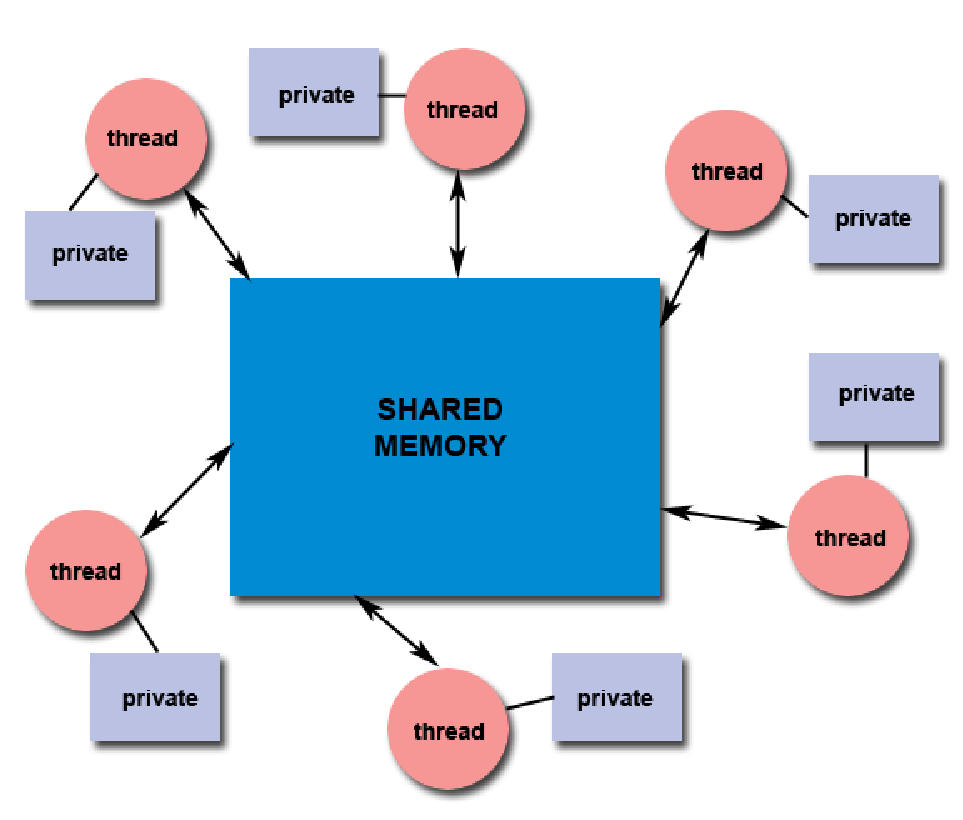

Figure 5.2:
Thread shared memory model.
This saves the
overhead
associated with replicating a program's resources for each thread.
Each thread also benefits from a global memory view because it shares the memory space of program.
Any thread can execute any subroutine at the same time as other threads.
Threads communicate with each other through global memory (updating address locations).
Changes made by one thread to shared system resources (such as closing a file) will be seen by all other threads.
This requires
synchronization constructs
to insure that more than one thread is
not updating
the same global address at any time.

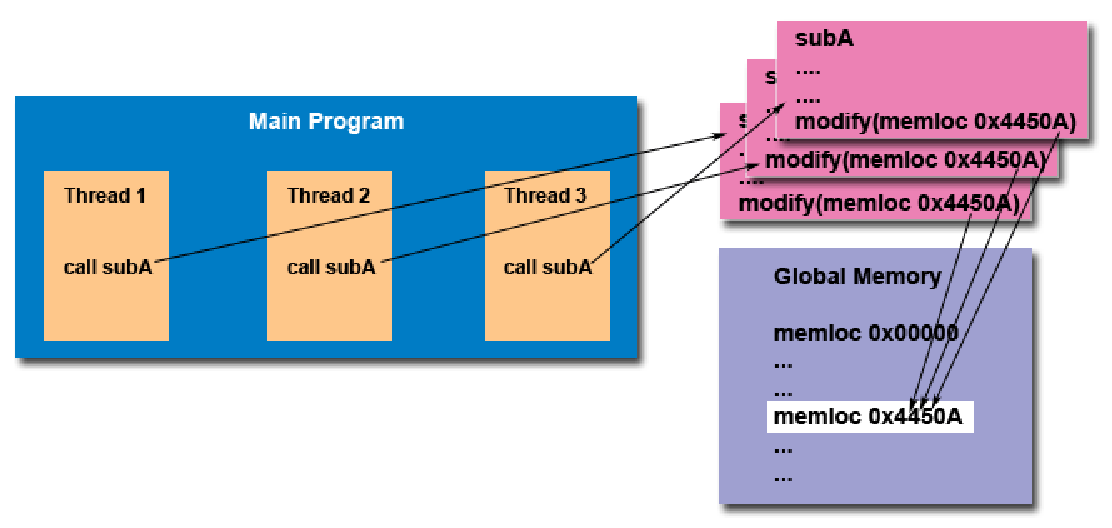

Figure 5.3:
Threads
Unsafe!
Pointers having the same value point to the same data.
