The OpenMP Programming Model

• OpenMP directives provide support for concurrency, synchronization, and data handling while avoiding the need for explicitly setting up mutexes, condition variables, data scope, and initialization.
• OpenMP directives in C is based on the #pragma compiler directives.
• The directive itself consists of a directive name followed by clauses.

  #pragma omp directive [clause list]


• OpenMP programs execute serially until they encounter the parallel directive.
• This directive is responsible for creating a group of threads.
• The exact number of threads can be
  • specified in the directive (num_threads(4)),
  • set using an environment variable (export OMP_NUM_THREADS=4 [sh, ksh, bash]),
  • defined at runtime using OpenMP functions (omp_set_num_threads(4)).

• The main thread that encounters the parallel directive becomes the master of this group of threads with id 0.
• The parallel directive has the following prototype:

  #pragma omp parallel [clause list]
  /* structured block */


• Each thread created by this directive executes the structured block specified by the parallel directive (SPMD).

      1 int main() {
      2     omp_set_num_threads(4);
      3     // Do this part in parallel
      4     #pragma omp parallel
      5     {
      6         printf( "Hello, World!\n" );
      7     }
      8 return 0;

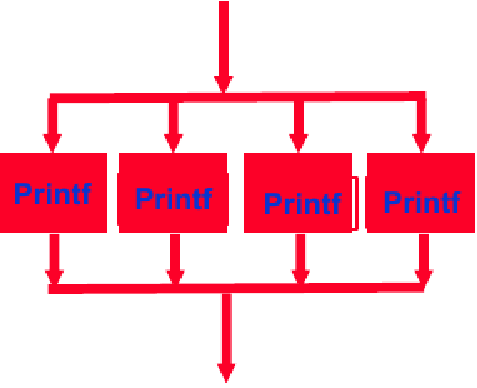

  Figure 5.4: Creating four threads for "printf" function.



Figure 5.5: A sample OpenMP program along with its Pthreads translation that might be performed by an OpenMP compiler.

The clause list is used to specify conditional parallelization, number of threads, and data handling.

1	Conditional Parallelization: The clause if (scalar expression) determines whether the parallel construct results in creation of threads.
2	Degree of Concurrency: The clause num_threads (integer expression) specifies the number of threads that are created by the parallel directive.
3	Data Handling: The clause private (variable list) indicates that the set of variables specified is local to each thread. Each thread has its own copy of each variable in the list. The clause firstprivate (variable list) is similar to the private clause, except the values of variables on entering the threads are initialized to corresponding values before the parallel directive. The clause shared (variable list) indicates that all variables in the list are shared across all the threads,

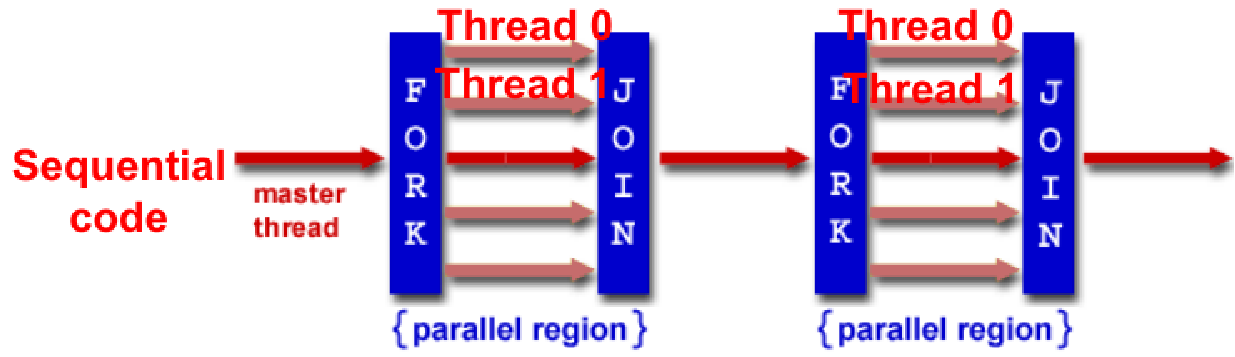

Figure 5.6: Fork-Join Model.

FORK	Master thread then creates a team of parallel threads.
Statements in program that are enclosed by the parallel region construct are executed in parallel among the various threads.
JOIN	When the team threads complete the statements in the parallel region construct, they synchronize and terminate, leaving only the master thread.

Shared Variables. OpenMP default is shared variables. To make private, need to declare with pragma:

    1 #include <stdio.h>
    2 #include <omp.h>
    3 #include <unistd.h>
    4 int a,b,x,y,num_threads,thread_num;
    5 int main()
    6 {
    7   printf("I am in sequential part.\n");
    8 #pragma omp parallel num_threads (8)  private (a) shared (b)
    9   {
   10     num_threads=omp_get_num_threads();
   11     thread_num=omp_get_thread_num();
   12     x=thread_num;
   13 //     sleep(1);
   14     y=x+1;
   15     printf("I am openMP parellized part and thread %d. \n X and Y values are %d and %d. \n",omp_get_thread_num(),x,y);
   16   }
   17   printf("I am in sequential part again.\n");
   18 }

X and y are shared variables. There is a risk of data race.

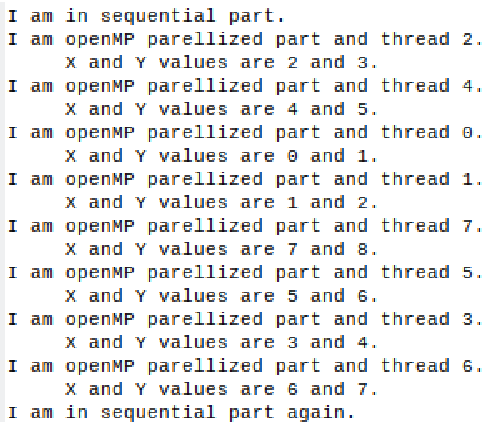

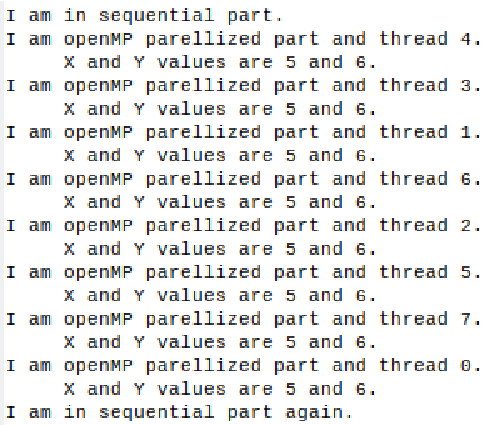

Table 5.1: Correct and Wrong outputs of the program.

Using the parallel directive;

    1
    2 pragma omp parallel if (is_parallel == 1) num_threads(8) private (a) shared (b) firstprivate(c)
    3 {
    4     /* structured block */
    5 }

• Here, if the value of the variable is_parallel equals one, eight threads are created.
• Each of these threads gets private copies of variables a and c, and shares a single value of variable b.
• Furthermore, the value of each copy of c is initialized to the value of c before the parallel directive.
• The clause default (shared) implies that, by default, a variable is shared by all the threads.
• The clause default (none) implies that the state of each variable used in a thread must be explicitly specified.
  • This is generally recommended, to guard against errors arising from unintentional concurrent access to shared data.

The reduction clause :

• Specifies how multiple local copies of a variable at different threads are combined into a single copy at the master when threads exit.
• The usage of the reduction clause is reduction (operator: variable list).
  • This clause performs a reduction on the scalar variables specified in the list using the operator.
  • The variables in the list are implicitly specified as being private to threads.
• The operator can be one of

        + * - & | ^ &&  ||


• Each of the eight threads gets a copy of the variable sum.

    1
    2 #pragma omp parallel reduction(+: sum) num_threads(8)
    3 {
    4 	/* compute local sums here */
    5 }
    6 /* sum here contains sum of all local instances of sums */

Parallel Loop:

• Compiler calculates loop bounds for each thread directly from serial source (computation decomposition).
• Compiler also manages data partitioning.
• Synchronization also automatic (barrier).
• Preprocessor calculates loop bounds and divide iterations among parallel threads.

Loop Scheduling in Parallel for pragma

• Master thread creates additional threads, each with a separate execution context.
• All variables declared outside for loop are shared by default, except for loop index which is private per thread.
• Implicit "barrier" synchronization at end of for loop.
• Divide index regions sequentially per thread
  • Thread 0 gets $0, 1, \ldots (max/n)-1$
  • Thread 1 gets $max/n, max/n+1, \ldots 2*(max/n)-1$
  • $\vdots$

Example:

#pragma omp parallel for
for (i=0; i<max; i++) zero[i] = 0;

• Breaks for loop into chunks, and allocate each to a separate thread.
• if max = 1000 with 2 threads: assign 0-499 to thread 0, and 500-999 to thread 1.
