Parallel Processing

We have mentioned that the operation of many numerical methods can be speeded up by the proper use of parallel processing or distributed systems.

• Vector/Matrix Operations:
  • For inner products, a very elementary case, we assume we have two vectors, $v$, $u$, of length $n$, and an equal number of parallel processors, $proc(i), i=1,\ldots,n$, where each $proc(i)$ contains the components, $v_i,u_i$.
  • Then the multiplication of all the $v_i*u_i$ can be done in parallel in one time unit.
  • if the processors are connected suitably we can actually do the addition part in $log(n)$ time units.
  • This assumes a high degree of connectivity between the processors. The different designs are referred to as the topologies of the systems.
  • Suppose our processors were only connected as a linear array in which the communication send/receive is just between two adjacent processors.

    $$P_1\leftrightarrow P_2 \leftrightarrow \ldots \leftrightarrow P_{n-1} \leftrightarrow P_n$$



  • Then our addition of the $n$ elements would be $n/2$ time steps, because we could do an addition at each end in parallel and proceed to the middle.

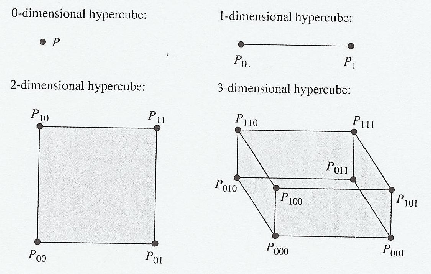

  • The $n$-dimensional hypercube is a graph with $2^n$ vertices in which each vertex has $n$ edges (is connected to $n$ other vertices). This graph can be easily defined recursively because there is an easy albalgorithm determine the order in which the vertices are connected. See Fig. 1.

    Figure 1: Connectivity between the processors (topologies).


  • Two vertices are adjacent if and only if the indices differ in exactly one bit.
  • We can get to the $(n+1)$-dimensional hypercube by making two copies of the $n$-dimensional hypercube and then adding a zero to the leftmost bit of the first $n$-dimensional cube and then doing the same with a l to the second cube.
  • There are many other designs for connecting the processors. Such designs include names like star, ring, torus, mesh
  • For the matrix/vector product, Ax, we assume that processor $proc(i)$ contains the $i$th row of $A$ as well as the vector, $x$.
  • Because one processor is performing this dot product of row $i$ of $A$ and of vector $x$, the whole operation will only take $O(n)$ units of time.
  • For the matrix/matrix product, AB, for two $n \times n$ matrices, we suppose that we have $n^2$ processors. Before we start our computations each processor, $P_{ij}$ will have received the values for row $i$ of $A$ and column $j$ of $B$. Based on our previous discussion, we can expect the time to be $O(n)$.
• Gaussian Elimination:
  • To see how this can be done in a parallel-processing environment, we must examine the row-reduction phase.
  • If we are computing in a parallel processing environment, we can take advantage of the independence by assigning each row-reduction task to a different processor:

    $$\left[ \begin{array}{rrrrr} 1 & 2 & 1 & 3 &4\\ 2 & 5 & 4 ... ...-(1/1)R_1 \\ \rightarrow proc(3):R_4-(3/1)R_1 \\ \end{array}$$



  • Suppose each row assignment statement requires 4 time units, one for each element in a row. Then the sequential algorithm performs this stage of the row reduction in 12 time units, whereas we need only 4 time units for the parallel algorithm.
  • This example of parallel processing on the first stage of row reduction of a $4 \times 4$ system matrix generalizes to any row reduction in stage $j$ of an $n \times n$ system matrix.
  • Recall that there are $n - 1$ row-reduction stages in Gaussian elimination, one for each of the $n$ columns of the coefficient matrix except for the last column. This suggests that we need $n - 1$ processors to do the reduction in parallel.

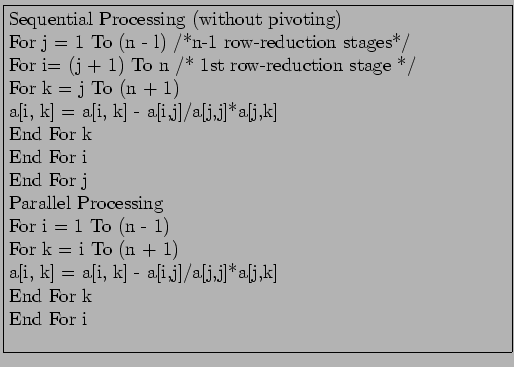

    Algorithms for Row Reduction in Gaussian Elimination:

  • Sequential algorithm requires $O(n^3)$ operations and that the parallel algorithm with $n$ processors accomplishes the same task in $O(n^2)$ operations.
• Problems in Using Parallel Processors:
  • The algorithm described here does not pivot. Thus, our solution may not be as numerically stable as one obtained via a sequential algorithm with partial pivoting.
  • The coefficient matrix $A$ is assumed to be nonsingular. It is easy to check for singularity at each stage of the row reduction, but such error-handling will more than double the running time of the algorithm.
  • We have ignored the communication and overhead time costs that are involved in parallelization. Because of these costs, it is probably more efficient to solve small systems of equation using a sequential algorithm.
  • Other, perhaps faster, parallel algorithms exist for solving systems of linear equations.
• Iterative Solutions -The Jacobi Method
  • Recall that at each iteration of the algorithm a new solution vector $x^{(n+1)}$ is computed using only the elements of the solution vector from the previous iteration, $x^{(n)}$.
  • Because Gauss-Seidel iteration requires that the new iterates for each variable be used after they have been obtained, this method cannot be speeded up by parallel processing.
