The Kernel Symbol Table

• We've seen how insmod resolves undefined symbols against the table of public kernel symbols. The table contains the addresses of global kernel items (functions and variables) that are needed to implement modularized drivers.
• When a module is loaded, any symbol exported by the module becomes part of the kernel symbol table. In the usual case, a module implements its own functionality without the need to export any symbols at all. You need to export symbols, however, whenever other modules may benefit from using them.
• New modules can use symbols exported by your module, and you can stack new modules on top of other modules. Module stacking is implemented in the mainstream kernel sources as well: the msdos filesystem relies on symbols exported by the fat module, and each input USB device module stacks on the usbcore and input modules.

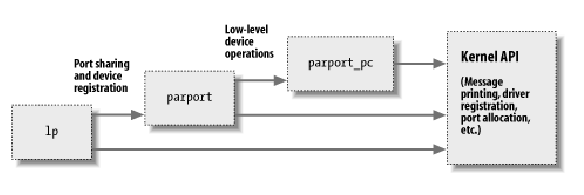

• Stacking in the parallel port subsystem is shown in Figure 1.7; the arrows show the communications between the modules and with the kernel programming interface.

  Figure 3: Stacking of parallel port driver modules.


• The Linux kernel header files provide a convenient way to manage the visibility of your symbols, thus reducing namespace pollution (filling the namespace with names that may conflict with those defined elsewhere in the kernel) and promoting proper information hiding. If your module needs to export symbols for other modules to use, the following macros should be used.

  EXPORT_SYMBOL(name);
  EXPORT_SYMBOL_GPL(name);
