Switches

 $&bull#bullet;$
Routing can be achieved using two mechanisms:
1
Source-path, the entire path to the destination is stored in the packet header at the source location.
 $&bull#bullet;$
When a packet enters the switch, the outgoing port is determined from the header.
 $&bull#bullet;$
Used routing data is stripped from the header and routing information for the next switch is now in the front.
2
Table-based routing, the switch must have a complete routing table that determines the corresponding port for each destination.
 $&bull#bullet;$
When a packet enters the switch, a table lookup will determine the outgoing port.

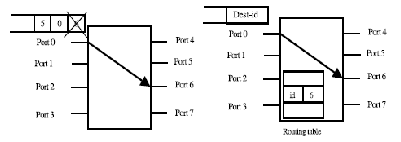

Figure 7.6: Source-path routing vs. table-based routing.
\includegraphics[scale=0.8]{figures/routing.ps}
