Message Passing Architecture

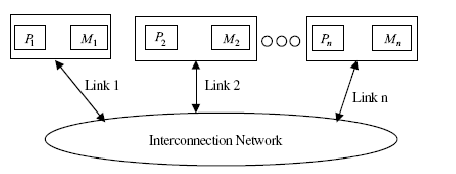

Figure 6.1:
Message passing systems.
|
- Message passing systems provide alternative methods for communication and movement of data among multiprocessors (compared to shared memory multiprocessor systems, see Fig. 6.1).
- There is no global memory so it is necessary to move data from one local memory to another by means of message passing (send/receive pairs).
- Each processor has access to its own local memory and can communicate with other processors using the interconnection network. These systems eventually gave way to Internet-connected systems where the processor/memory nodes are cluster nodes, servers, clients, or nodes in a greater grid.
- Aspects of message passing systems;
- programming model,
- message routing,
- network switching,
- processor support for message passing,
- examples of message passing systems.
